Oct 9, 2025

iOS 26 Sandblaster

Introduction

Hello,

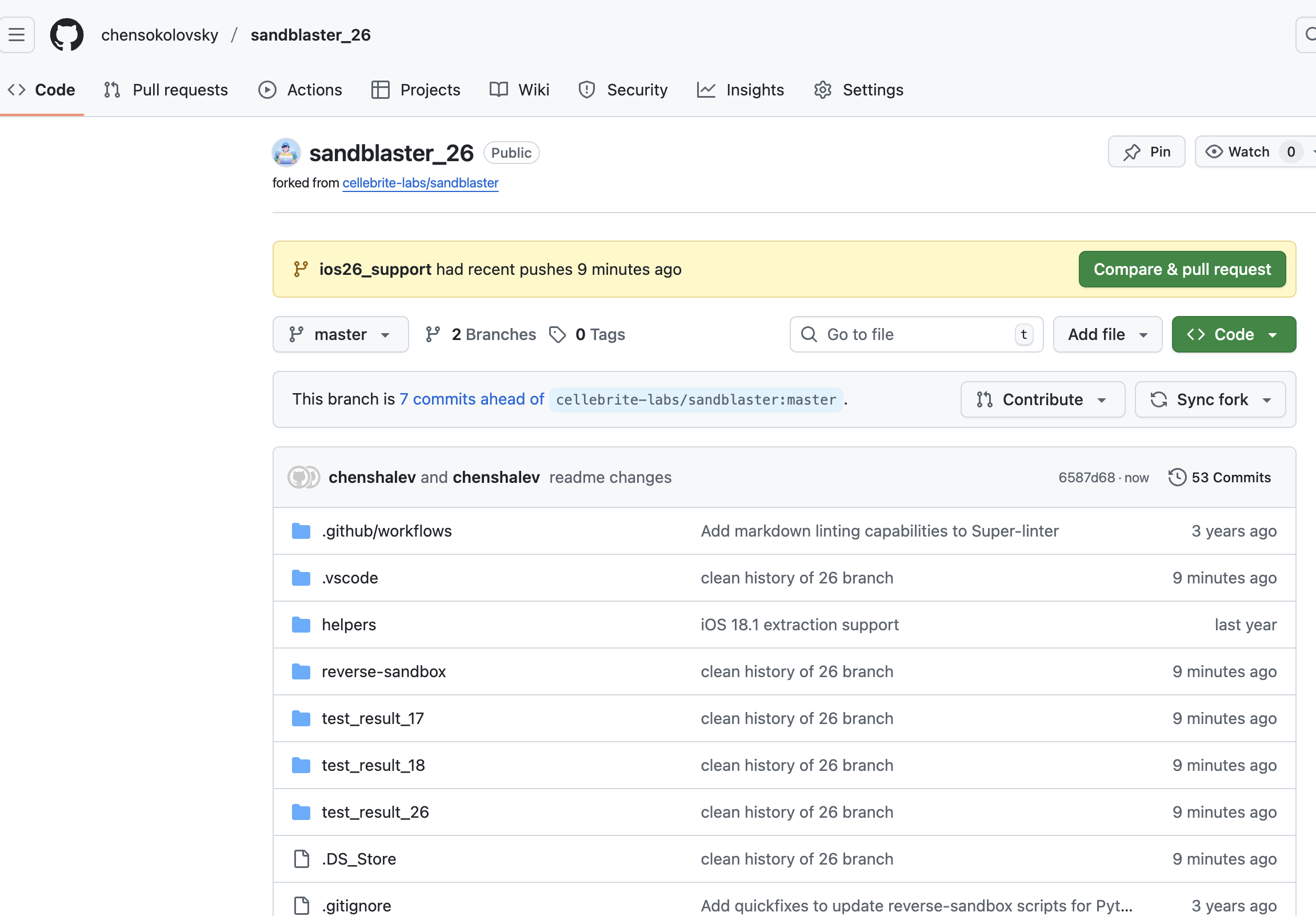

In this post I am sharing a fork of Sandblaster, compatible with iOS 26.
The fork improves Cellebrite's fork of (the original) Sandblaster. Cellebrite's fork currently works for iOS 17, and partially on iOS 18.
My new fork fully supports iOS versions 17, 18 and 26, for all 3 groups of profiles:

- Platform
- Protobox
- Collection

Usage

Extracting the profiles requires some preparations, mainly extracting blobs of data from the sandbox kext.
More reading is available on the README of the repo and its links.
There are 3 groups of profiles: platform, protobox, and collection
For ios 18 and later, protobox may interchange with autobox, but the principle remains.
Using Sandblaster requires 4 files: 1 blob of data for each group, and a 4th file containing the list of operations.
Once all files are obtained, extracting the profiles looks like this:

$ python3 reverse-sandbox/reverse_sandbox.py -r 26 -o ../ios_26_operations.txt -d ../results_ios26/platform ../ios26/platform.bin
Then repeat this for collection and protobox, while keeping the same operations.txt file for all 3 groups

Getting the Kext

This example uses the latest ios version as of today, 26.0.1
To get the needed blobs and operations list we need to obtain the sandbox kext.
We can use ipsw cli for this.
First, get the model and version you want from some of the available resources like ipsw.me
In this case I selected iPhone18,1 23A355
So download the kernel:

$ ipsw download ipsw -d "iPhone18,1" -b "23A355" --kernel
and extract the sandbox

$ ipsw kernel extract 23A355__iPhone18,1/kernelcache.release.iPhone18,1 com.apple.security.sandbox

Extracting The Files

In this example I am using IDA pro, but Ghidra, hopper, binary ninja, can work as well.

Locating blobs offsets and sizes

Opening the kext in IDA and searching for the string builtin collection should have one xref and places you inside a large function that is responsible for creating the profiles

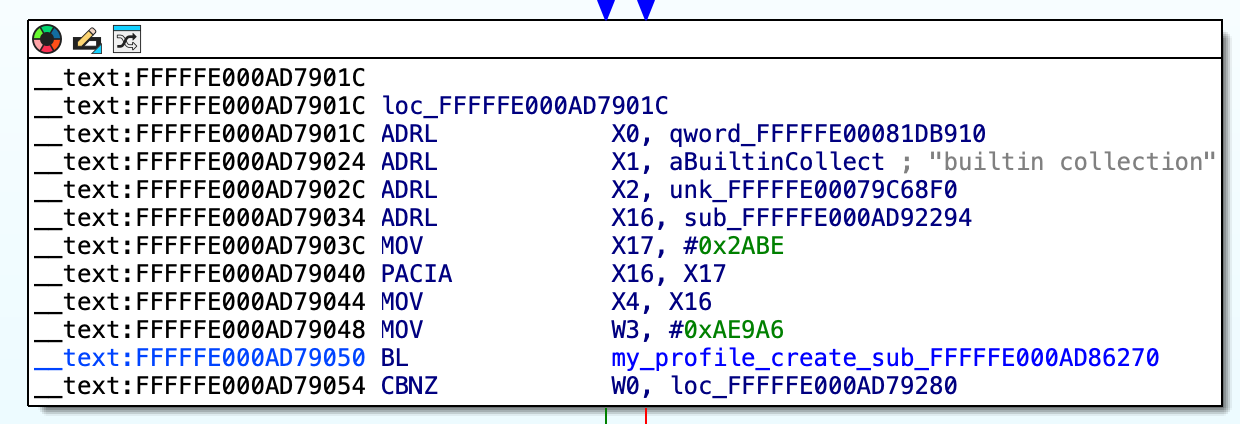

The graph node should look similar to this:



w3 contains the size, x2 contains the data blob. The sub_ below w3 was renamed for convenience.
Write down the numbers for later collection: 0xFFFFFE00079C68F0 0xAE9A6

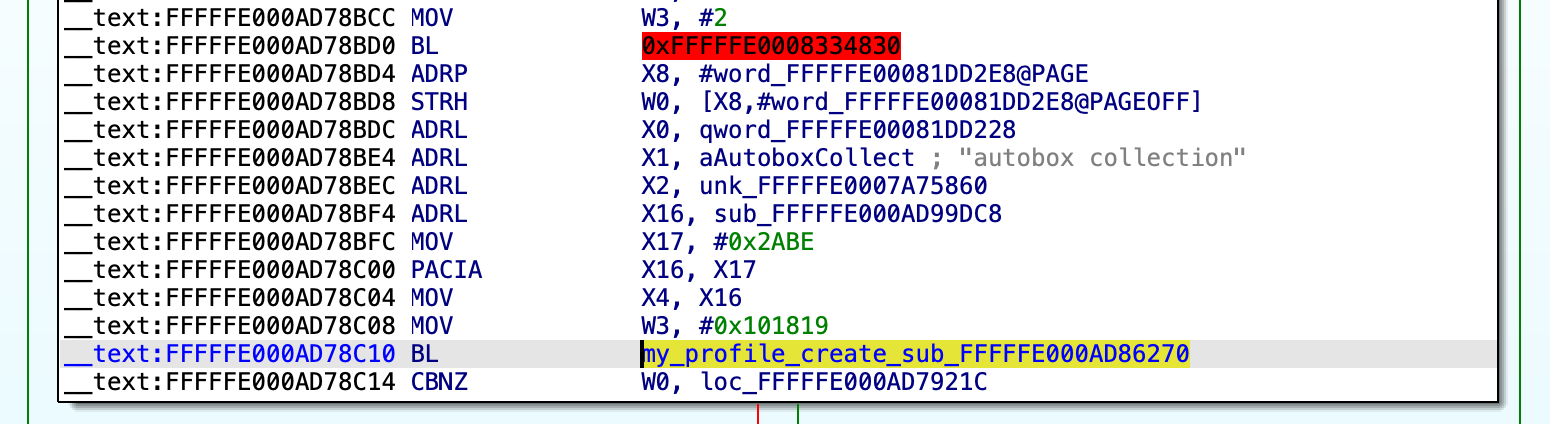

There should be another xref to that same sub which contains the protobox(autobox) blob info:

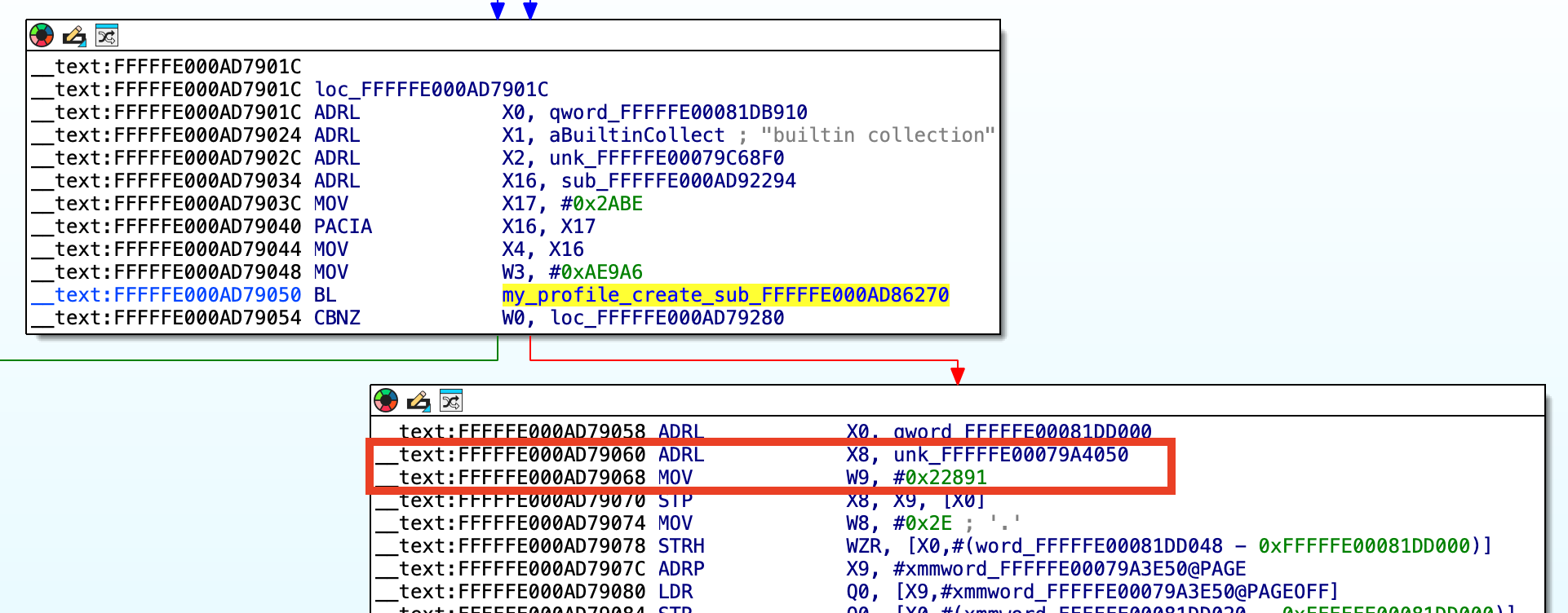

The last blob should be located right next to the collection graph like so:



This time the registers are x8 and w9.
Storing all 3 offsets and values, we end up with this:

collection 0xFFFFFE00079C68F0 0xAE9A6 protobox 0xFFFFFE0007A75860 0x101819 platform 0xFFFFFE00079A4050 0x22891

Dumping

Now we need to dump those to files. Using IDA python in this case, but this can be done in many other ways

open("/Users/.../sandboxProfiles/ios26.0.1/collection.bin","wb").write(ida_bytes.get_bytes(0xFFFFFE00079C68F0, 0xAE9A6)) open("/Users/.../sandboxProfiles/ios26.0.1/protobox.bin","wb").write(ida_bytes.get_bytes(0xFFFFFE0007A75860, 0x101819)) open("/Users/.../ios26.0.1/platform.bin","wb").write(ida_bytes.get_bytes(0xFFFFFE00079A4050, 0x22891))

Each line can be pasted into the python console line at the bottom of IDA.

Operations List

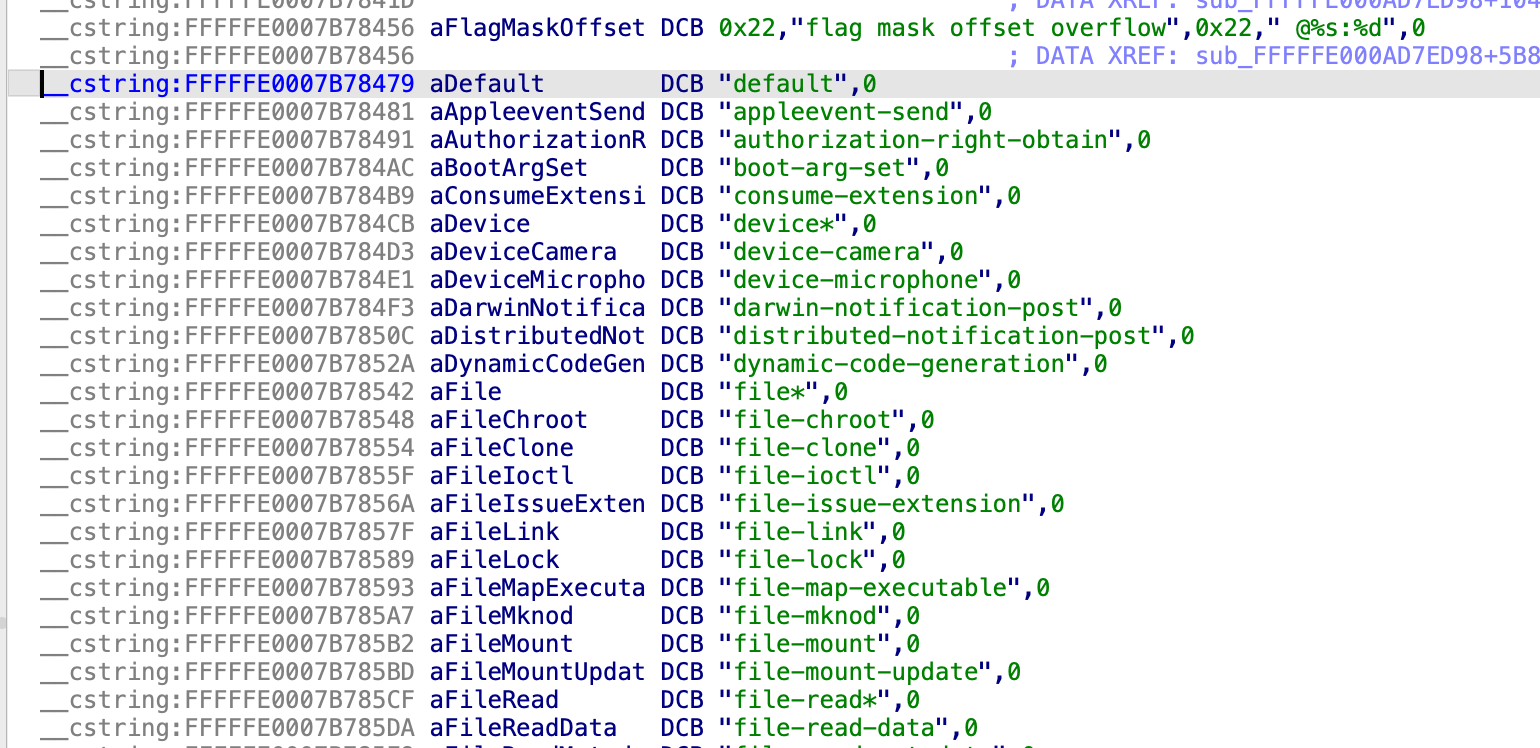

Searching for the string default should land you at the top of a list of string similar to this:



After about 200 strings it will end most likely on xpc-message-send
Dump this list and save it as a newline-separated text file like so:
default appleevent-send authorization-right-obtain boot-arg-set consume-extension device* device-camera device-microphone etc...

Disclaimers

I do not work for cellebrite, I just forked their repo and made it ios 26 compatible.
The patches I obtained were not a result of reverse engineering the functions, it mainly relies of the existing branch and changing offsets to prevent crashes. It may well be that some information is missing due to these skips, there is more work to do for verifying this.
Tested on ios 17, 18, 26 beta 7, 26.0, 26.0.1
Cellebrite's fork contains additional functionality and script that automates the downloading and extraction process. I did not test that on ios 26

Credits

Most of the work here is based on the mentioned projects and forks, and my work is minor. I will try to list them all:
- The original Sandblaster
- Cellebrite Labs's fork
- The missing readme by tfp0labs
- Slides from census labs
- 8ksec blog post and online course
- Video by Jonathan Levin

From ios 26 beta 7
